Part Number:
ETI0001-1285AA
Rugged Rackmount or Fixed Mount
Mil Spec® 1500 VA UPS and Frequency Converter
US Navy / US Coast Guard / US Marine Corps Configuration
1.5 kVA Mil Spec UPS and Frequency ConverterRugged Rack or Fixed Mount Unit
Light Weight Design
ETI0001-1285AA Rugged Mil Spec UPS and Frequency Converter

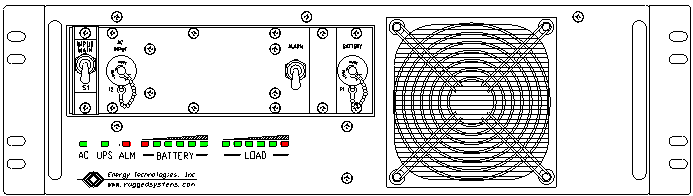

Standard Front Panel Layout
ETI0001-1285AA Rugged Mil Spec UPS and Frequency Converter

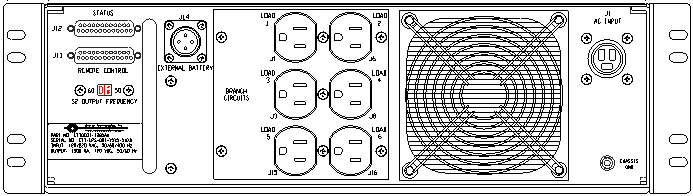

Standard Rear Panel Layout
The field proven Military Power® UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, ruggedconstruction, compact size and light weight design. These units are equallysuited for use in shipboard, airborne, vehicular, field deployed or fixedlocations with controlled or uncontrolled environments. The
ETI0001-1285AA is being used in various military project becauseof their stringent performance and reliability requirements.
The heavy-duty chassis,occupying only 5.25" (3U) of rack space, has rounded metal cornersand rugged handles front and rear, aiding in safe handling. The chassisis constructed of brushed aluminum to minimize overall weight. Internally, all majorcomponents are well secured and electrically insulated to prevent damage due to mechanical shock andvibration.
The internal shieldedinput transformer provides galvanic isolation with provisions for domestic (115/120 VAC, CONUS) and international (220/230 VAC, OCONUS) inputvoltages. Special EMI/RFI filters and input power factor correction minimize both input current and harmonics. The unit also operatesas a frequency converter, taking 46-440 hertz input and converting it to clean,uninterruptible 50 or 60 hertz power, switch selectable. The input circuit breaker and the galvanic isolationtransformer all provide a double pole isolated source for all installations including shipboardsystems or overseas locations where phase references and grounding are notconsistent.
The LED arrays keep theoperator informed as to the unit's status including load and battery levels. Thehigh intensity audible alarm can be heard in high noise environments. All controlsand protective devices are brought to the front and rear panels with critical switches having fingerguards. Further, all front panel devices are recessed to prevent damage or accidentaloperation. Variousoptional power distribution controls are available which mount on the front panel orremotely.
The rear panel provides connectors for the input and outputpower. Multipleinput and output power panel options are available. Removable and washable air filters and a high capacity stainless steel ball bearing fans provideadded protection in both controlled and hostile environments. The exhaust air is diverted out the rearvent, with alternateair flow directions optional.The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section. The Status connector provides aninterface with optional computer software providing loss of AC and low battery status as well asremote shut down capability.
See the Power Distribution Units section for alisting of stand alone PDUs. See the N5 Series
ETI0001-1445for a version of this UPS with an integrated PDU and remote control.
Overall, the Rugged Power line is uniquely qualified for criticalshipboard, vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.
| AC OUTPUT | |
| Output voltage: UPS | 120 VAC true sinewave standard, up to 600 VAC optional |
| Output rating: UPS | 1500 VA standard, optional to 2400 VA in 3U 0.65-0.75 pf standard, optional configurations to 24,000 VA |
| Non-linear load capacity: UPS | Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS | ± 3.0% static regulation of nominal ± 4.0% dynamic (0 to 50% load step) |
| Overload surge capacity: UPS | 110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: UPS | Less than 5.0% into 100% non-linear load |
| Output frequency: UPS | 60 Hz ± 1.0% independent of input frequency 50, 400 or 1000 Hz output available as an option |
| Operational status | Status, load and battery LEDs, w/contacts Adjustable level,+90 dB audible alarm w/on/off |
| AC INPUT | |
| Input voltage selection: | Nominal 115/230 VAC, autoranging input |
| Input voltage tolerance: UPS | 86-270 VAC @ full load without using battery, to 70 VAC @ 75% load |
| Input frequency: | From 45 Hz to 440 Hz standard |
| Input power factor: | Better than 99% typically |
| Input/output isolation: | 1500 VA, up to 120 dB common mode, <1.5 mA leakage |
| Input transient suppression: | Complies with IEEE 587 and UL 1449 |
| Input control/protection: | Guarded 2 pole circuit breaker and fuse Optional cold start to turn on w/o AC present |
| Input power connection: | AMP CPC 206036-2, 3 pin, threaded locking |
| INTERNAL BATTERY | |
| Internal battery type: | Maintenance free immobilized electrolyte, Flame retardant materials (Oxygen Index 28+) |
| Internal battery life: | Rated for continuous service life of 5 years |
| Internal DC protection: | Front panel mounted fuse standard, breaker optional |
| Internal battery recharge: | Recharged to nominal in <8 hours |
| DISTRIBUTION PANEL | |
| Output circuits: | Six outputs standard, optional configurations |
| Output control: | Optional remote control panel w/rocker switches |
| Output receptacles: | NEMA 5-15R standard, other options |
| MECHANICAL | |
| Dimensions ( H x D x W ): | 5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm) |
| Rack Slide Mount Patterns: | Jonathan, General Devices patterns, others optional |
| Alternate Mounting Options: | Table, Wall, Floor, Portable, Horizontal/Vertical |
| Unit weight: UPS | 90 lb. (41 kg) UPS with lift handles front and rear |
| Audible noise: | Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: | High capacity, positive pressure, forced air |
| Cooling air direction: | Front intake, exhaust to rear, others optional |
| Air intake filter: | Washable metal filter media, others optional |
| ENVIRONMENTAL | |
| Storage temperature: | -40° to 158° F ambient (-40° to 70° C) with fully charged batteries |
| Operating temperature: | -4° to 131° F ambient ( -20° to 55° C), lower/ higher optional |
| Operating humidity: | 0 to 95% relative humidity (non-condensing) |
| Storage elevation: | Up to 40,000 ft (12,192 m) |
| Operating elevation: | Up to 15,000 ft (4,572 m), higher optional |
| STANDARDS | |
| United States: | Meets UL-1778 standard for UPS equipment, MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000 |
| Canada: | CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: | EMI/RFI FCC Part 15, Class A, MIL STD 461 standard |
| OPTIONAL ACCESSORIES | |
| Autoranging International Input, Cold Start, Emergency Power Off, Elapsed Time Meter, Alternate I/O Configurations, Dual Source Input, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface, Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port, Transport Cases, Slides and Mounting Kits | |
