Part Number:
ETI0001-1230
Rugged Mil Spec® 1500 VA UPS

Rugged Mil Spec Rack Mount 1.5 kVA

P/N:

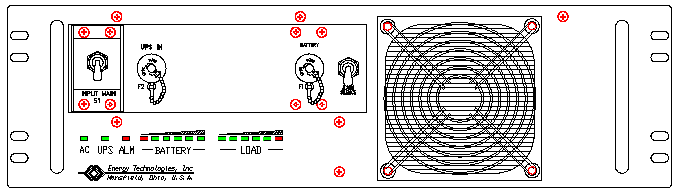

ETI0001- Rugged Mil Spec UPS Standard Front Panel Layout

P/N:
ETI0001-1230 Rugged Mil Spec UPS Standard Rear PanelLayout

The field proven Rugged Power™ UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, ruggedconstruction, compact size and light weight design. These units are equallysuited for use in shipboard, airborne, vehicular, field deployed or fixedlocations with controlled or uncontrolled environments.The
ETI0001-1230 is being used bythe US Navy as thepower source for critical ship systems because of the stringent performanceand reliability requirements.

The heavy-duty chassis, occupying only 5.25”(3U) by 23.5” depth, has rounded metal corners and rugged handles frontand rear, aiding in safe handling. Internally, all major components are wellsecured and electrically insulated to prevent damage due to shock andvibration.

The internal shieldedinput transformer provides galvanic isolation with provisions for domestic (115 VAC, CONUS) and optionally for international (230 VAC, OCONUS) inputvoltages. Theinput switch and the galvanic isolation transformerall provide a double pole isolated source for all installations including shipboard systems oroverseas locations where phase references and grounding are not consistent.  SpecialEMI/RFI filtersand input power factor correction minimize both input current and harmonics.

The unit also operates as a frequency converter, taking 46-70 hertz input and converting it to clean, uninterruptible 60 hertz power. A frequency selection switchis available for those sites requiring 50 hertz output instead of the standard 60 hertz. Optionally, 46-440 hertz input as well as 400 hertz output are available.

The LED arrays keep the operatorinformed as to the unit's status including load and battery levels. Thehigh intensity audible alarm can be heard in high noise environments. Allcontrols and protective devices are brought to the front and rear panels with critical switches having finger guards. Further, all front panel devices are recessed toprevent damage or accidental operation.

The rear panel provides locking connectors for the inputand output power. Removable and washable air filters and a high capacity stainless steel ballbearing fan provide added protection in both controlled and hostileenvironments. The exhaust air is diverted out the front vents, withalternate air flow directions optional. The external battery connector allows the safe and easy addition ofextra battery modules without having to shut the unit down.The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section. TheStatus connector provides an interface with optional computer softwareproviding loss of AC and low battery status as well as remote shut down capability.

See the Power Distribution Units section for alisting of stand alone PDUs. See the N5 Series section forversions of UPS with an integrated PDU and remote control.

Overall, the Rugged Power line is uniquely qualified for criticalshipboard, vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.
