P/N: ETI0001-1057 3.0 kVA International Rugged Rackmount UPS

Part Number: ETI0001-1057
Rugged COTS 3000 VA Rackmount UPS
220 VAC OCONUS Applications

Applied Data StandardProduct Overseas 220 VAC, 50 Hz Input/Output Isolated UPS
3000 VA Rugged Rack Mount, Modular Power System
w/ 45 Minutes of Battery Backup

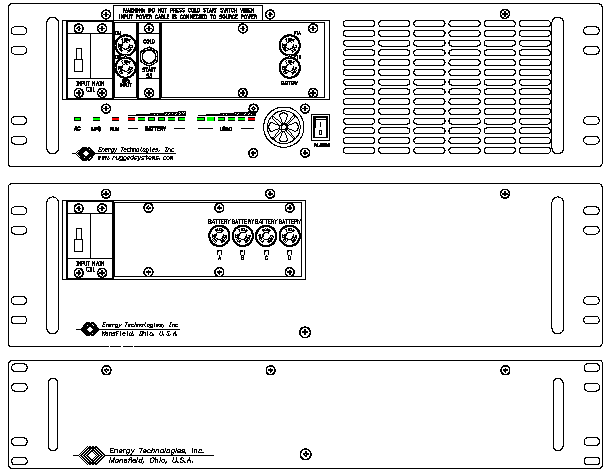

ETI0001-1057 Rugged COTS UPS Standard Front Panel Layout
ETI0001-1057 Rugged International COTS UPS Standard Front Panel Layout

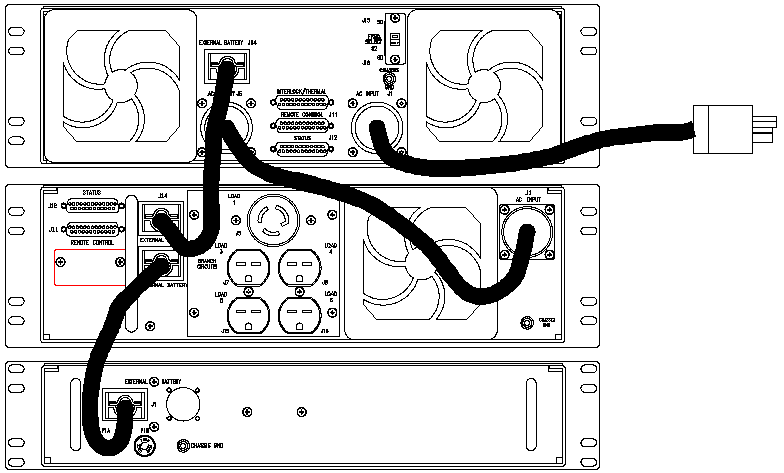

ETI0001-1057 Rugged COTS UPS Standard Rear Panel Layout
ETI0001-1057 Rugged International COTS UPS Standard Rear Panel Layout

The field proven Rugged Power™ UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, ruggedconstruction, compact size and light weight design. These units are equallysuited for use in shipboard, airborne, vehicular, field deployed or fixedlocations with controlled or uncontrolled environments. The "ETI0001-1057"was initially designed for Applied Data overseas applications, becoming the standardfor several programs.

Each heavy-duty chassis occupiesa minimum of rack space while delivering up to3000 VA of clean, uninterruptible power continuously. The rounded metal corners and rugged handles, aidin safe handling. Internally, all major components are well secured and electricallyinsulated to prevent damage due to shock and vibration. The optional mounting kit includes flanges and legs for eitherhorizontal or vertical positioning.

The internal shieldedinput transformer provides galvanic isolation with provisions for international (220 VAC, OCONUS) input voltage.

The LED arrayskeep the operator informed as to the unit's status including load and battery levels. Thehigh intensity audible alarm can be heard in high noise environments, yet is easilyadjustable to suit quieter conditions. All controls and protective devices are brought to the front and rear panels with critical switches or breakers guarded. Further, all front paneldevices are recessed to prevent damage or accidental operation. Variousoptional power distribution controls are available which mount on the front panel orremotely.

The rear panel provides locking connectors for the input and output power. Multipleinput and output power panel options are available. A removable and washable intake air filter and highcapacity stainless steel ball bearing fan provide added protection in both controlled and hostileenvironments. The air is drawn from the rear and exhaust air is diverted out the front vent, with alternateair flow directions optional. The external battery connector allows the safe and easy addition ofextra battery modules without having to shut the unit down.The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section. Theunit also operates as a frequency converter, taking 46-70 hertz input and converting it to 50 hertz power. A frequency selection switchis available for those sites requiring 60 hertz output instead of the standard 50 hertz. The Status connector provides an  interface with optional computer software providing loss of AC and low battery status as well as remote shut down capability.

See the Power Distribution Units section for alisting of stand alone PDUs. See the N5 Series ETI0001-1404for a version of this UPS with an integrated PDU and remote control.

Overall, the Rugged Power line is uniquely qualified for critical shipboard, vehicle, airborne or land based systems combining advanced modular design features with highly reliable construction

Technical Specifications:
P/N: ETI0001-1057

Output voltage: UPS 220 VAC true sinewave standard, up to 600 VAC optional
Output rating: UPS 3000 VA standard in 3U chassis
0.65-0.75 pf standard, optional configurations to 24,000 VA
Non-linear load capacity: UPS Up to 100% non-linear load capability w/o derating
Output voltage regulation: UPS ± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity: UPS 110% for 10 minutes; 125% for 30 seconds
Harmonic distortion: UPS Less than 5.0% into 100% non-linear load
Output frequency: UPS 60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
400 or 1000 Hz output available as an option
Operational status Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off
Input voltage selection: Nominal 220 VAC, optional autoranging input of 85-270 VAC
Input voltage tolerance: UPS 85-135 VAC @ full load without using battery, to 70 VAC @ 75% load
Input frequency: From 46 Hz to 70 Hz standard, optional to 440 Hz
Input/output isolation: 2500 VA, up to 120 dB common mode, <5 mA leakage
Input transient suppression: Complies with IEEE 587 and UL 1449
Input control/protection: Guarded 2 pole circuit breaker plus fuse,
Guarded cold start to turn on w/o AC present
Input power connection: AMP CPC Type XII,  7 pin locking, various options
Battery type: Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+)
Battery life: Rated for continuous service life of 5 years
DC protection: Front panel mounted fuse standard, breaker optional
Battery backup: 45 minutes at 100% load, 90+ minutes at 50% load
Battery expansion: Up to 24 hours w/ Battery Expansion Modules
Output circuits: Six outputs standard
Output control: Optional panel switches or breakers
Optional remote interlock ON/OFF control
Output receptacles: NEMA 5-15R standard, various options
Dimensions ( H x D x W ):
     Main Battery/Output Module
     Auxiliary Battery Module:
5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm)
5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm)
3.50 (2U) x 23.5 x 19.0 in (  89 x 597 x 483 mm)
Rack Slide Mount Patterns: Jonathan, General Devices patterns, others optional
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Unit weight:
     Main Battery/Output Module
     Auxiliary Battery Module:
105 lb. (48 kg) with lift handles front and rear
132 lb. (60 kg) with lift handles front and rear
102 lb. (46 kg) with lift handles front and rear
Audible noise: Less than 47 dB @ 5.0 ft., ANSI "A" scale
Cooling type: High capacity, positive pressure, forced air
Cooling air direction: Rear intake, exhaust to front, others optional
Air intake filter: Washable filter media, others optional
Storage temperature: -13° to 140° F ambient (-25° to 60° C), lower/higher optional
Operating temperature: 32° to 113° F ambient (0° to 45° C ), lower/higher optional
Operating humidity: 0 to 95% relative humidity (non-condensing)
Storage elevation: Up to 40,000 ft (12,192 m)
Operating elevation: Up to 15,000 ft (4,572 m), higher optional
United States: Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810, 901D, 1399-300A, & 2000
Canada: CSA C22.2 No. 107 UPS safety requirements
EMI Protection: EMI/RFI FCC Part 15, Class A standard, MIL STD 461 optional
  Autoranging International Input, Emergency Power Off, Elapsed Time Meter, Alternate I/O Configurations, Dual Source Input, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface, Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port, Transport Cases, Slides and Mounting Kits
