P/N: ETI0001-1051, 1.0 kVA Rugged Rackmount UPS w/ 4 Hours Backup

Part Number: ETI0001-1051
Rugged COTS 1000 VA Mobile Cart UPS
w/ 4 Hours of Battery Backup


US Army StandardProduct Standard N1 Configuration, Rugged Power IsolatedUPS
1000 VA Rugged Rack Mount, Modular Power System
Autoranging Input Allow the Unit to be Used Worldwide
Four (4) Hours of BatteryBackup w/ Mobile Casters Base

ETI0001-1051 Rugged COTS UPS Standard Front Panel Layout
ETI0001-1051 Rugged COTS UPS Standard Front Panel Layout
w/ 4 Hour Battery Module

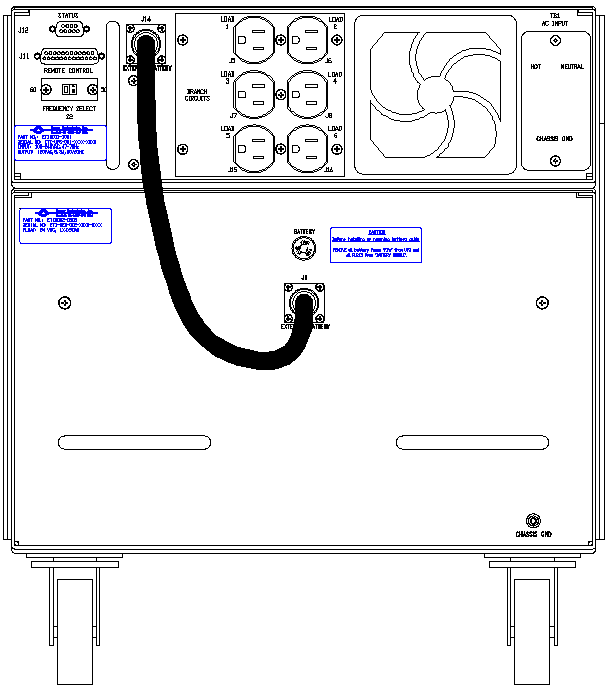

ETI0001-1051 Rugged COTS UPS Standard Rear Panel Layout
ETI0001-1051 Rugged COTS UPS Standard Rear Panel Layout
w/ 4 Hour Battery Module

The field proven Rugged Power™ UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, ruggedconstruction, compact size and light weight design. These units are equallysuited for use in shipboard, airborne, vehicular, field deployed or fixedlocations with controlled or uncontrolled environments. The "ETI0001-1051"was initially designed for US Army applications, becoming the standardfor several programs.

The heavy-duty chassis with casters occupiesa minimum of space while delivering up to1000 VA of clean, uninterruptible power. The UPS plus extended battery moduleprovide over 4 hours of backup. The rounded metal corners and rugged handles, aidin safe handling. Internally, all major components are well secured and electricallyinsulated to prevent damage due to shock and vibration.

The internal shieldedinput transformer provides galvanic isolation withautoranging for both domestic (115 VAC, CONUS) and international (230 VAC, OCONUS) inputvoltages. Forfield deployed scenarios, the Cold Start feature allows the unit to run from itsbattery module before external AC is available. Theinput switch and the galvanic isolation transformerall provide a double pole isolated source for all installations including shipboard systems oroverseas locations where phase references and grounding are not consistent.

The LED arrayskeep the operator informed as to the unit's status including load and battery levels. Thehigh intensity audible alarm can be heard in high noise environments, yet is easilyadjustable to suit quieter conditions. All controls and protective devices are brought to the front and rear panels with critical switches or breakers guarded. Further, all front paneldevices are recessed to prevent damage or accidental operation. Variousoptional power distribution controls are available which mount on the front panel orremotely.

The rear panel provides locking connectors for the input and output power. Multipleinput and output power panel options are available. A removable and washable intake air filter and highcapacity stainless steel ball bearing fan provide added protection in both controlled and hostileenvironments. The air is drawn from the rear and exhaust air is diverted out the front vent, with alternateair flow directions optional. The external battery connector allows the safe and easy addition ofextra battery modules without having to shut the unit down.The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section. Theunit also operates as a frequency converter, taking 46-70 hertz input and converting it to 60 hertz power. A frequency selection switchis available for those sites requiring 50 hertz output instead of the standard 60 hertz. The Status connector provides an  interface with optional computersoftware providing loss of AC and low battery status as well as remote shut down capability.

See the Power Distribution Units section for alisting of stand alone PDUs. See the N5 Series ETI0001-1402for a version of this UPS with an integrated PDU and remote control.

Overall, the Rugged Power line is uniquely qualified for critical shipboard, vehicle, airborne or land based systems combining advanced modular design features with highly reliable construction

Technical Specifications:
P/N: ETI0001-1051

AC OUTPUT
Output voltage: UPS 120 VAC true sinewave standard, up to 600 VAC optional
Output rating: UPS 1000 VA standard in 3U chassis
0.65-0.75 pf standard, optional configurations to 24,000 VA
Non-linear load capacity: UPS Up to 100% non-linear load capability w/o derating
Output voltage regulation: UPS ± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity: UPS 110% for 10 minutes; 125% for 30 seconds
Harmonic distortion: UPS Less than 5.0% into 100% non-linear load
Output frequency: UPS 60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
400 or 1000 Hz output available as an option
Operational status Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off
AC INPUT
Input voltage selection: Nominal 115 VAC, optional autoranging input of 85-270 VAC
Input voltage tolerance: UPS 85-135 VAC @ full load without using battery, to 70 VAC @ 75% load
Input frequency: From 46 Hz to 70 Hz standard, optional to 440 Hz
Input/output isolation: 2000 VA, up to 120 dB common mode, <5 mA leakage
Input transient suppression: Complies with IEEE 587 and UL 1449
Input control/protection: Guarded 2 pole circuit breaker plus fuse
Guarded cold start to turn on w/o AC present
Input power connection: AMP CPC Type XII, 7 pin locking, various options
INTERNAL BATTERY
Battery type: Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+)
Battery life: Rated for continuous service life of 5 years
DC protection: Front panel mounted fuse standard, breaker optional
Battery backup: 4+ hours w/ 6U Battery Expansion Module
Battery expansion: Up to 24 hours w/ Battery Expansion Modules
DISTRIBUTION PANEL
Output circuits: Six outputs standard, up to eight optional
Output control: Optional panel switches or breakers
Optional remote interlock ON/OFF control
Output receptacles: NEMA 5-15R standard, various options
MECHANICAL
Dimensions ( H x D x W ):
  UPS
  6U Battery Module
5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm)
10.5 (6U) x 23.5 x 19.0 in (266 x 597 x 483 mm)
Rack Slide Mount Patterns: Jonathan, General Devices patterns standard, others optional
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Unit weight:
  UPS
  6U Battery Module
90 lb. (41 kg) with lift handles front and rear
260 lb. (118 kg) with lift handles front and rear and side lifting eyes
Audible noise: Less than 47 dB @ 5.0 ft., ANSI "A" scale
Cooling type: High capacity, positive pressure, forced air
Cooling air direction: Rear intake, exhaust to front, others optional
Air intake filter: Washable filter media, others optional
ENVIRONMENTAL
Storage temperature: -13° to 140° F ambient (-25° to 60° C), lower/higher optional
Operating temperature: 32° to 113° F ambient (0° to 45° C ), lower/higher optional
Operating humidity: 0 to 95% relative humidity (non-condensing)
Storage elevation: Up to 40,000 ft (12,192 m)
Operating elevation: Up to 15,000 ft (4,572 m), higher optional
STANDARDS
United States: Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810, 901D, 1399-300A, & 2000
Canada: CSA C22.2 No. 107 UPS safety requirements
EMI Protection: EMI/RFI FCC Part 15, Class A standard; MIL STD 461 optional
OPTIONAL ACCESSORIES
  Autoranging International Input, Emergency Power Off, Elapsed Time Meter, Alternate I/O Configurations, Dual Source Input, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface,  Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port, Transport Cases, Slides and Mounting Kits
