Part Number:
ETI0001-2228AC
Rugged Mil Spec® 1500 VA
Rackmount Global UPS
US Navy / Raytheon SSDS (Ship Self DefenseSystem) Configuration
Military Power® Rugged Mil Spec Rack Mount 1.5kVA UPS
Autoranging Global IsolatedInput Accepts 85-270 VAC, 46-70 Hz
Input PFC, Battleshort, Manual Bypass, Elapsed Time
Plus Front Access Hot Swappable Battery Module
Backward Compatible for Refitting Existing SSDS Systems
ETI0001-2228AC Rugged Mil Spec UPS Standard Front Panel Layout

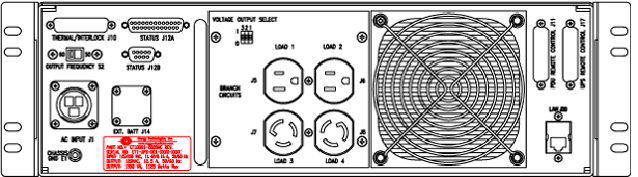

ETI0001-2228AC Rugged Mil Spec UPS Standard Rear PanelLayout
The field proven Military Power® UPS line is ideally suited for military,industrial, computer and telecommunications applications requiring high reliability, ruggedconstruction, compact size and light weight design. These units are equallysuited for use in shipboard, airborne, vehicular, field deployed or fixedlocations with controlled or uncontrolled environments. The
ETI0001-2228AC is specifically designed for lightweightglobal powerused bythe US Navy as thepower source for critical systems because of the stringent performanceand reliability requirements.
The heavy-duty chassis, occupying only 5.25”(3U) of rack space while delivering up to 1500 VA of clean, uninterruptible power. Therounded metal corners and rugged handles frontand rear, aid in safe handling. Internally, all major components are wellsecured and electrically insulated to prevent damage due to shock andvibration. These units can be mountedhorizontally or vertically. Optional heavy-duty rack slides provideeasy installation and removal of the unit with full extension.
The internal shielded input transformerprovides galvanic isolation with provisions for both domestic(115 VAC, CONUS) and international (230 VAC, OCONUS) input voltages. Theautoranging input voltage selection allows inputting either 115 VAC or 230 VAC without having to open the UPS enclosure. Special EMI/RFI filters and input power factor correction minimize both input current and harmonics. The unit also operates as a frequency converter, taking 46-70 hertz input and converting it to clean, uninterruptible 60 or 50 hertz power. Optionally, 46-440 hertz input as well as either 400 or 1000 hertz outputs are available.
The LED arrays keep the operatorinformed as to the unit's status including load and battery levels. The ElapsedTime Indicator records the number of operational hours for records andscheduling preventative maintenance of attached equipment. The front panel alsoprovides easy access to both the AC Input and Battery Input fuses. Coupled withthe adjacent spare fuses, MTTR is reduced to less than 10 minutes.
The internal intelligent thermalsensors provide two stage monitoring of unit temperatures,with both local andremote Battleshort override capability of thermal shutdown. Battleshort can beengaged via the front panel control, via a remote contact input or via asoftware command. When in Battleshort, an audible alarm is sounded and anindicator is lit. Thehigh intensity audible alarm can be heard in high noise environments andincludes an audible enable/disable switch.
Allcontrols and protective devices are brought to the front and rear panels with critical switches or circuit breakers having finger guards. Further, all front panel devices are recessed toprevent damage or accidental operation. Clips on the front panel hold sparefuses for ready access. Theinput circuit breaker and the galvanic isolation transformerall provide a double pole isolated source for all installations including shipboard systems oroverseas locations where phase references and grounding are not consistent. Themanual bypass feature included is operated from the front panel. Even in thebypass mode, the
ETI0001-2228AC stillprovides galvanic isolation, transient surge protection and EMI/RFI filtering.
The
ETI0001-2228AC has the added benefit of having a field replaceable battery via front drawout battery module. The battery is a true hot-swappable module and does not require going to bypass like competing units. Even with this battery module removed, this UPS can continue to operate as an electronic power conditioner and frequency converter, providing clean, well regulated, sinusoidal power to the load. The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials for added safety. For more information, see the Battery Technology section.
The rear panel provides locking connectors for the inputand output power with various optional configurations available. Thetwo Status connectors provide an interface with optional computer softwareproviding loss of AC and low battery status as well as remote shut down capability.
Thisunit draws air through the front air filter and exhausts out the rear vent into the rack.This allows the unit to be used in negative or neutral pressure racks. Forpositive pressure racks, rear to front or rear to side versions are available. The removable and washable metal screen air filters and high capacity stainless steel ball bearing fans provideadded protection in both controlled and hostile environments.
See the Power Distribution Units section for alisting of stand alone PDUs. See the N5 Series section forversions of UPS with an integrated PDU and remote control.
Overall, the Military Power line is uniquely qualified for criticalshipboard, vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.
| AC OUTPUT | |
| Output voltage: | 120 VAC true sinewave output standard |
| Output rating: UPS | 1500 VA, 1125 watts standard, For 1000 VA, 750 watts, see ETI0001-2227 For 2000 VA, 1500 watts, see ETI0001-2229 |
| Non-linear load capacity: UPS | Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS | ± 3.0% static regulation of nominal ± 4.0% dynamic (0 to 50% load step) |
| Overload surge capacity: UPS | 110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: UPS | Less than 5.0% into 100% non-linear load |
| Output frequency: UPS | 60 Hz or 50 Hz ± 2.5% synchronized to utility 60 Hz or 50 Hz ± 1.0% w/ utility not available 400 or 1000 Hz output available as an option |
| Operational status | AC Input status, UPS operational, UPS alarm, Battery level, Low battery, Load level, Overload, Warm temperature, Hot temperature, Manual bypass and Battleshort LEDs, Elapsed time hour meter Alarm contacts for Loss of AC and Low Battery +90 dB audible alarm with audible on/off switch Asynchronous serial COM port |
| AC INPUT | |
| Input voltage selection: | Autoranging from nominal 115 VAC to 230 VAC |
| Input voltage tolerance: UPS | 85-270 VAC @ full load without using battery, down to 70 VAC @ 75% load |
| Input frequency: | From 46 Hz to 70 Hz standard, optional to 440 Hz |
| Input power factor: | Better than 99% typically |
| Input/output isolation: | 2000 VA, up to 120 dB common mode, <1.0 mA leakage |
| Input transient suppression: | Complies with IEEE 587, UL 1449 and Mil Std 1399 |
| Input control/protection: | Guarded 2 pole 100 G shock rated circuit breaker (CB1) plus UPS input fuse (F2), spare fuse on front Manual bypass switch to force bypass mode Cold start switch available to turn on w/o AC present |
| Input power connections: | One AMP CPC, 3 pin, locking |
| INTERNAL BATTERY | |
| Internal | Maintenance free immobilized electrolyte, Flame retardant materials (Oxygen Index 28+) |
| Internal | Rated for continuous service life of 5 years |
| Internal | Front panel mounted fuse (F1), spare fuse on front |
| Internal battery time: | 10+ minutes @ 1000 watt load, 20+ minutes @ 50% |
| Internal battery recharge: | Recharged to nominal in <8 hours |
| Internal battery replacement: | Hot swap drawout/plug-in module from front of unit <3 minutes to change battery modules |
| Battery expansion: | Up to 24 hours w/ optional Battery Expansion Modules |
| DISTRIBUTION PANEL | |
| Output circuits: | Four AC outputs standard, several optional configurations |
| Output control: | Only via CB1; optional remote control panel w/switches available |
| Output receptacles: AC output | (2) NEMA 5-15R and (2) L5-15R with locking cable bales standard, various options |
| MECHANICAL | |
| Dimensions (H x D x W): UPS | 5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm) |
| Rack Slide Mount Patterns: | Jonathan, General Devices patterns standard, others optional |
| Alternate Mounting Options: | Table, Wall, Floor, Portable, Horizontal/Vertical |
| Unit weight: UPS and Battery UPS only Battery Module only |
90 lb. (41 kg) with lift handles front and rear 50 lb. (23 kg) with lift handles front and rear 40 lb. (18 kg) with lift handle in front |
| Audible noise: | Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: | High capacity, negative pressure, forced air |
| Cooling air direction: | Front intake, exhaust to rear, others optional |
| Air intake filter: | Washable metal filter media, others optional |
| ENVIRONMENTAL | |
| Storage temperature: | -40° to 158° F ambient (-40° to 70° C) with fully charged batteries |
| Operating temperature: | -4° to 131° F ambient ( -20° to 55° C), lower/ higher optional |
| Operating humidity: | 0 to 95% relative humidity (non-condensing) |
| Storage elevation: | Up to 40,000 ft (12,192 m) |
| Operating elevation: | Up to 15,000 ft (4,572 m), higher optional |
| STANDARDS | |
| United States: | Meets UL-1778 standard for UPS equipment, MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000 |
| Canada: | CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: | EMI/RFI FCC Part 15, Class A; EN55022; MIL STD 461 |
| OPTIONAL ACCESSORIES | |
| Emergency Power Off, Alternate I/O Configurations, Dual Source Input, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface, 10BaseT Ethernet SNMP/HTTP port, Transport Cases, Slides and Mounting Kits | |
