P/N: ETI0001-1473 2.0 kVA Rugged Rackmount COTS WAAS UPS with Internal Intelligent PDU

Part Number:
RuggedCOTS 2000 VA Combination
Rackmount Electronic Power Conditioner/UPS
and Intelligent Power Distribution/Controller Unit

Italian Navy Rugged COTSProduct
Ultra Quiet 2000 VA Rack Mount, Electronic Power Conditioner
w/ Integrated8 Circuit, Intelligent, Solidstate Power Distribution Unit
Both Local and Remote Load Control Either Via Hardware or Software
Auxiliary 24 VDC Outputs, Elapsed Time Meter, Temperature Alarms
Automatic Load Shedding and Power Up Sequencing
Can Operate as a UPS with Addition of Optional Battery Module

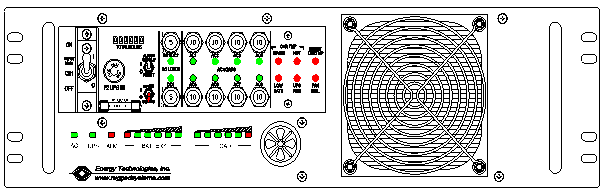

<br />ETI0001-1473 Rugged COTS UPS and PDU Standard Front Panel Layout
ETI0001-1473 Rugged COTS Integrated Power Conditioner
and Power Controller, Standard Front Panel Layout

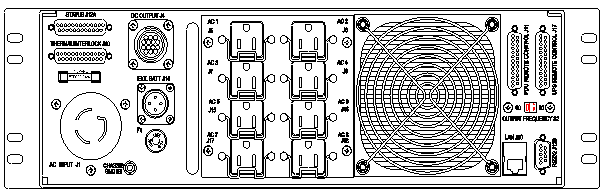

<br />ETI0001-1473 Rugged COTS UPS and PDU Standard Rear Panel Layout
ETI0001-1473 Rugged COTS Integrated Power Conditioner
and Power Controller, Standard Rear Panel Layout

The field proven Rugged Systems™ UPS line is ideally suited for commercial,industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.These units are equally suited for use in shipboard, airborne, vehicular, fielddeployed or fixed locations with controlled or uncontrolled environments.The
ETI0001-1473 was specifically designed to meet the stringentrequirements of the Italian Navy.The
ETI0001-1473 does not require a separate PDU since the PDUfunctions are already integrated into the UPS module. This saves rack space, cabling andexpense while improving overall reliability.

The heavy-duty chassis, occupying only 5.25”(3U) for the electronics and 3.5" (2U) for the optionalbattery module by 22” depth,delivers up to 2000 VA of clean, uninterruptible power. Therounded metal corners and rugged handles, both front and rear, aid in safehandling. Internally, all major components are well secured and electricallyinsulated to prevent damage due to shock and vibration in any axis.

The standard version accepts domesticvoltages from 85-135 VAC at full load. At loads less than full load, the input voltage can be even lower. The optional global input version has autoranging from 85-270 VAC (CONUS and OCONUS) utilizing an internal input transformer. When ordering the global version, the inputcircuit breaker and the galvanic isolation transformerprovide a double pole isolated source for overseas locations where phase references and grounding are not consistent.

Theunit also operates as a frequency converter, taking 46-70 hertz input and converting it to 60 or 50 hertz power switch selectable. The unit can also be ordered with 46-440 hertz input. Special EMI/RFI filters and input power factor correction minimize both input current and harmonics. The
ETI0001-1473 has the added benefit of having an internally redundant 24 VDC DC power source output.

The LED arrays keep the operatorinformed as to the unit's status including load and battery levels. The Elapsed Time Indicator records the number of operational hours for records and scheduling preventative maintenance of attached equipment. The front and rear panels also provide easy access to both the AC Input and Battery Input fuses. Coupled with the adjacent spare fuses, MTTR is reduced to less than 15 minutes.

The internal intelligent thermalsensors provide two stage monitoring of unit temperatures,with both local andremote Inhibit Over Temperature (INHIBIT OVRTMP) capability of thermal shutdown. INHIBIT OVRTMP can beengaged via the front panel control, via a remote contact input or via asoftware command. When in INHIBIT OVRTMP, an audible alarm is sounded and anindicator is lit. The high intensity audible alarm can be heard in high noise environments and includes an audible enable/disable/reset switch and an adjustable vane to control the sound level.

All controls and protective devices are brought to the front and rear panels with critical switches or breakers guarded. Further, all front panel devices are recessed to prevent damage or accidental operation. The internal intelligent PDU allows control of the individual output circuits incorporating thermal and interlock interfaces for additional control and safety. Ten push/pullcircuit breakers provide both circuit protection and manual controls. Both the input and load circuit breakers are shock rated to over 100 Gs. The display andcontrol panel can be mounted remotely in the rack at eye level, or on the keyboard console,or on the unit front panel with only a logic level cable connection.

The rear panel provides locking connectors for the input and output power with various optional configurations available. Thisunit draws air through the front air filter and exhausts out the rear vent into the rack.This allows the unit to be used in either negative or neutral pressureracks. The stainless steel ball bearing fan is a special extra quiet version to keep the unit's overallaudible level below 44 dB.

TheStatus connector provides aninterface with optional computer software providing loss of AC and low battery status as well as remote shut down capability. The UPS Remote Control and PDU Remote Control connectors provide aninterface to optional remote display/control panels. The RJ45 LAN port provides an SNMP/HTTP interface forvarious UPS parameters and control of the load outputs. Internal software functions include the ability to Sequence Loads of Startup and to Shed Loads for either Overload, or Overtemperature or to lengthen battery run time (when used with battery modules). These functions follow a user defined priority lists and schedules.

The batteries in the optional battery modules are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section.See the Power Distribution Units section for a listing of stand alone PDUs. See the N3 Series for a version of UPS without the integrated PDU and remote control.

Overall, the Rugged Power line is uniquely qualified for critical systems combining advanced modular designfeatures with highly reliable construction.

Technical Specifications:

Output voltage: 120 VAC true sinewave standard
Output rating: 2000 VA, 1500 watt max standard in 3U chassis
Non-linear load capacity: Up to 100% non-linear load capability w/o derating
Output voltage regulation: ± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity: 110% for 10 minutes; 125% for 30 seconds
Harmonic distortion: Less than 5.0% into 100% non-linear load
Output frequency: 60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
400 or 1000 Hz output available as an option
Operational status AC Input status, UPS operational, UPS alarm, Battery level, Low battery, Load level, Overload, Warm temperature, Hot temperature and Battleshort LEDs, Elapsed time hour meter
Alarm contacts for Loss of AC and Low Battery
90+ dB audible alarm with audible on/off/reset switch
Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port,
Output voltage / rating: DC 24 VDC / 300 watt
Output voltage regulation: ± 2.0% static regulation of nominal
Overload surge capacity: 110% continuously
Output protection: (2) Front panel mounted CBs
Input voltage selection: Nominal 115 VAC
Input voltage tolerance: UPS 85-135 VAC @ full load without using battery,
Down to 70 VAC @ 75% load
Input frequency: From 46 Hz to 70 Hz standard, optional to 440 Hz
Input power factor: Better than 99% typically
Input/output isolation: Optional 2000 VA, up to 120 dB common mode,
w/ <1.0 mA leakage
Input transient suppression: Complies with IEEE 587, UL 1449 and Mil Std 1399
Input control/protection: Guarded 2 pole 100 G shock rated circuit breaker (CB1) plus UPS input fuse (F2), spare fuse on front
Optional cold start to turn on w/o AC present
Input power connection: NEMA L5-30P locking
Output circuits: Eight controlled outputs via solidstate relays
Output control: Local control panel with (8) Aircraft style
Shock Rated Push/Pull Circuit Breakers
Thermal and remote interlock ON/OFF control
Output receptacles: NEMA 5-15R, Optional IEC320-15R
Output circuits: Three controlled outputs via solidstate relays
Output control: Local control panel with (2) Aircraft style
Shock Rated Push/Pull Circuit Breakers
Output receptacles: AMP MCPC 208487-1
Battery type: Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+)
Battery life: Rated for continuous service life of 5 years
DC protection: Panel mounted fuse standard, breaker optional
Battery expansion: Up to 24 hours w/ Battery Expansion Modules
Dimensions (H x D x W): Power Conditioner/Controller
Battery Module (optional)

5.25 (3U) x 22.0 x 19.0 in (133 x 559 x 483 mm)
3.50 (2U) x 18.5 x 19.0 in (89 x 470 x 483 mm)
Rack Slide Mount Patterns: Jonathan, General Devices patterns standard,
Others optional
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Unit weight:
Power Conditioner/Controller
Battery Module (optional)

50 lb. (22 kg) UPS with lift handles front and rear
55 lb. (25 kg) Battery with lift handles front and rear
Audible noise: Less than 44 dB @ 5.0 ft., ANSI "A" scale
Cooling type: High capacity, negative pressure, forced air
Cooling air direction: Front intake, exhaust to rear, others optional
Air intake filter: Washable metal filter media, others optional
Storage temperature: -40° to 158° F ambient (-40° to 70° C) with fully charged batteries
Operating temperature: 32° to 126° F ambient ( 0° to 52° C), lower / higher optional
Operating humidity: 0 to 95% relative humidity (non-condensing)
Storage elevation: Up to 40,000 ft (12,192 m)
Operating elevation: Up to 15,000 ft (4,572 m), higher optional
United States: Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810, 901D Grade A,
1399-300A & 2000
Canada: CSA C22.2 No. 107 UPS safety requirements
EMI Protection: EMI/RFI FCC Part 15, Class A;
EN55022; optional MIL STD 461
