P/N: ETI0001-1467 2.0 kVA Rugged Rackmount UPS with Internal Intelligent PDU

Part Number:
NSN: 6130-01-544-7251
4000 VA Rugged Integrated
Rackmount UPS and Intelligent
Power Distribution Unit

US Navy IT-21, SNAP III, JMOC, ADNS,MAST,SPAWAR Standard Product
Military Power®Configuration with Ethernet 10BaseT Communications
Isolated UPS, 2000 VA Rugged Rack Mount UPS w/ Integrated
6 Circuit, 2 Pole, Intelligent, Solidstate Power Distribution Unit

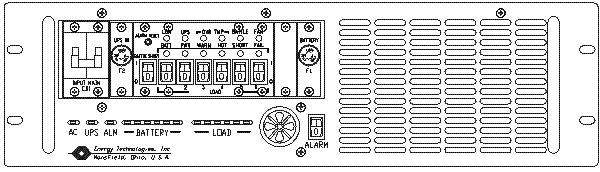

<br />ETI0001-1467 2000VA Rugged UPS Front View

ETI0001-1467 Standard Front Panel Layout

NSN: 6130-01-544-7251

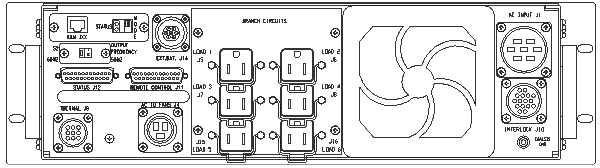

<br />ETI0001-1467 2000VA Rugged UPS Rear View

ETI0001-1467 Standard Rear Panel Layout

The field proven Military Power®UPS line is ideally suited for military, industrial and telecommunicationsapplications requiring a rugged rack, vehicular or field deployable, high reliability, compact sizeand light weight design. The heavy-duty chassis occupies only 3U (5.25”) ofrack space while delivering up to 2000 VA of clean, uninterruptible power. Therounded metal corners and rugged handles, both front and rear, aid in safehandling. Internally, all major components are well secured and electricallyinsulated to prevent damage due to shock and vibration. The internal shieldedinput transformer provides galvanic isolation with provisions for both domestic(CONUS) and optional autoranging international input voltages (OCONUS). The LEDarrays keep the operator informed as to the unit's status including load andbattery levels. The high intensity audible alarm can be heard in high noiseenvironments, yet is easily adjustable to suit quieter conditions. All controlsand protective devices are brought to the front panel with critical switches orbreakers guarded. Further, all front panel devices are recessed to preventdamage or accidental operation. The internal intelligent PDU allows control ofthe individual output circuits incorporating thermal and interlock interfacesfor additional control and safety, plus Battleshort override. The display andcontrol panel can be mounted remotely in the rack, or on the keyboard console,or on the unit front panel with only a logic level cable connection. Both theinput breaker and isolation transformer provide double pole isolation forshipboard systems.

The rear panel provides locking connectors for the input and output power with various optional configurations available. The washable air filters and high capacity ball bearing fan provideadded protection in both controlled and hostile environments. The externalbattery connector allows the safe and easy addition of extra battery moduleswithout having to shut the unit down. A frequency selection switch is availablefor those sites requiring 50-hertz output instead of the standard60-hertz.  The status D shell connectorprovides signals to interface with optional computer software providing loss of AC andlow battery status. The RJ45 LAN port provides an SNMP/HTTP interface forvarious UPS parameters.

Overall, the Rugged Power line is uniquely qualified for critical shipboard,vehicle, airborne or land based systems combining advanced modular designfeatures with highly reliable construction.

Technical Specifications:
NSN: 6130-01-544-7251

Output voltage: 120 VAC true sinewave std, up to 600 VAC optional
Output rating: UPS 2000 VA in 3U chassis
0.65-0.75 pf std, optional configurations to 24,000 VA
Non-linear load capacity: Up to 100% non-linear load capability w/o derating
Output voltage regulation: UPS ± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity: 110% for 10 minutes; 125% for 30 seconds
Harmonic distortion: Less than 5.0% into 100% non-linear load
Output frequency: UPS 60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
400 or 1000 Hz output available as an option
Operational status Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off
10BaseT Ethernet SNMP/HTTP com port
Input voltage selection: 120 VAC, optional up to 600 VAC, up to 440 Hz
Input voltage tolerance: UPS +15% -25% of nominal input rating
Input/output isolation: Up to 120 dB electrical noise attenuation
Input transient suppression: Complies with IEEE 587 and UL 1449
Input control/protection: Guarded 2 pole input breaker w/ UPS fuse
Optional cold start to turn on w/o AC present
Input power connection: AMP CPC Type XII locking, various options
Type: Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+)
Battery life: Rated for continuous service life of 5 years
DC protection: Front panel mounted fuse, optional breaker
Battery expansion: Up to 24 hours w/ Battery Expansion Modules
Output circuits: Six controlled outputs w/2 pole solidstate relays
Output control: Local/remote control panel w/rocker switches
Thermal and remote interlock ON/OFF control
Output receptacles: (6) NEMA 5-15R w/cord restraints, various options
Dimensions ( H x D x W ): 5.25 (3U) x 23.5 x 19.0 in (133x597x483mm)
Rack Slide Mount Patterns: Jonathan, General Devices or Emcor patterns
Alternate Mounting Options: Table, Wall, Floor, Portable, Horizontal/Vertical
Shipping weight: 115 lb. (52 kg) with lift handles front and rear
Audible noise: Less than 47 dB @ 5.0 ft., ANSI "A" scale
Cooling type: High capacity, positive pressure, forced air
Cooling air direction: Rear intake, exhaust to front or sides or both
Air intake filter: Washable filter media, various porosities
Storage temperature: -13° to 131° F ambient (-25° to 55° C )
Operating temperature: 32° to 113° F ambient (0° to 45° C ),higher optional
Operating humidity: 0 to 95% relative humidity (non-condensing)
Operating elevation: Up to 15,000 ft (4,572 m), higher optionally
United States: Meets UL-1778 standard for UPS equipment,
MIL STDs 810, 454 & 1399 Shock/Vib/Electrical
Canada: CSA C22.2 No. 107 UPS safety requirements
EMI Protection: EMI/RFI FCC, Class A, optional MIL STDs 461
  Dual Source Input, Batteryless Operation,
Battery Expansion Unit, Automatic Battery Test, Software Interface
